Omnium Framekit

From £962.10

Dimensions:

Bicycle Weight:

Cargo Volume:

Cargo Box Dimensions:

Max Load:

OMNIUM FRAMEKIT- MINI, MINI-MAX and the CARGO

This is the frame only!

SIZE GUIDE

Height: 155 – 165cm — we recommend — size X-Small
Height: 165 – 175cm — we recommend — size Small
Height: 175 – 185cm — we recommend — size Medium
Height: 185 – 195cm — we recommend — size Large
Height: 195 – 205cm — we recommend — size X-Large

FRAMEKIT INCLUDES – Frame
– Fork
– Headsets (front and rear)
– Steering rod
– Steerer tube
– Seat clamp
– Rack
– Thru axles front
– Comes with a choice of qr dropouts ore 12mm thru axle dropouts and thru axleThe fork always comes with 15×100 Thru Axle regardless of the choice on insert.Does NOT include spacers for headset or kickstand

MINI OMNIUM FRAMEKIT FROM £962.10

CARGO OMNIUM FRAMEKIT FROM £1331.10

MINI-MAX OMNIUM FRAMEKIT FROM £1331.10



Frames are available in a range of colours, please refer to the images above for the options.



Omnium Bikes, based in Copenhagen, makes fast, light cargo bikes. They have a range of models: the original Omnium Cargo; a long design with a large cargo area, the Omnium Mini which is a ‘Short John’ bike with a smaller cargo rack and the Omnium Mini-Max which is a shorter and nippier version of the Cargo.

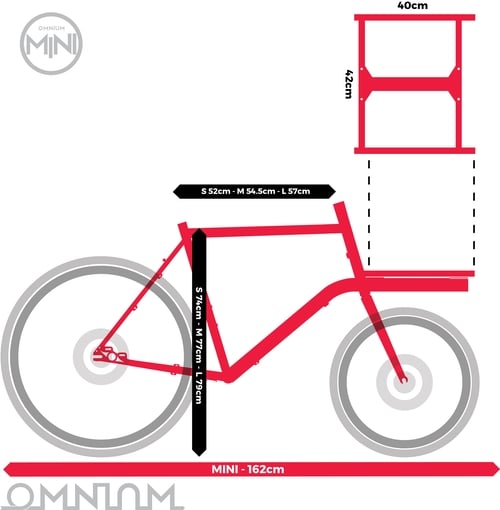

MINI FRAME SPECIFICATIONS

FRAME MATERIAL Double-Butted Chromoly Steel Frame
5 SIZES XS, S, M, L, XL
GEARS For 1x rear derailleur gear system
SEAT POST DIAMETER 31.6 mm
SEAT POST CLAMP SIZE 34.0 mm
REAR WHEEL TA Insert: 622, 12 x 142mm spacing, disc only
QR Insert: 622, 10 x 135mm spacing, disc only
FRONT WHEEL 406, 15 x 100 mm spacing, disc only
TYRE CLEARANCE, FRONT 55mm with mudguards
TYRE CLEARANCE, REAR 55mm with mudguards
THRU AXLE REAR 12×142, 172mm long, 19mm thread length, 1.75mm pitch
THRU AXLE FRONT 15×100, 125mm long, 17mm thread length, 1.5mm pitch
BOTTOM BRACKET BSA 68mm
HEADSET 1 1/8″ Ahead
Q-FACTOR/STANCE 145mm
RACK DIMENSIONS 40cm x 42cm, made of Aluminum
STANDARD RACK WEIGHT 1320g +/-
RACK BOLT SIZE M8 x 15mm
WEIGHT Complete Medium bike weighs 18kg
RECOMMENDED MAXIMUM LOADING WEIGHT INCLUDING RIDER 150 kg

MINI-MAX FRAME SPECIFICATIONS

FRAME MATERIAL Double-Butted Chromoly Steel Frame
5 SIZES XS, S, M, L, XL
GEARS For 1x rear derailleur gear system
SEAT POST DIAMETER 31.6 mm
SEAT POST CLAMP SIZE 34.0 mm
REAR WHEEL TA Insert: 622, 12 x 142mm spacing, disc only
QR Insert: 622, 10 x 135mm spacing, disc only
FRONT WHEEL 406, 15 x 100 mm spacing, disc only
TYRE CLEARANCE, FRONT 55mm with mudguards
TYRE CLEARANCE, REAR 55mm with mudguards
THRU AXLE REAR 12×142, 172mm long, 19mm thread length, 1.75mm pitch
THRU AXLE FRONT 15×100, 125mm long, 17mm thread length, 1.5mm pitch
BOTTOM BRACKET BSA 68mm
FORK HEADSET 1 1/8″ Threaded Integrated with locking cap
STEERER HEADSET 1 1/8″ Ahead
Q-FACTOR/STANCE 145mm
RACK DIMENSIONS 70cm x 50cm, made of Aluminum
STANDARD RACK WEIGHT 1320g +/-
RACK BOLT SIZE M10 x 15mm
WEIGHT Complete Medium bike weighs 19kg
RECOMMENDED MAXIMUM LOADING WEIGHT INCLUDING RIDER 150 kg

CARGO FRAME SPECIFICATIONS

FRAME MATERIAL Double-Butted Chromoly Steel Frame
5 SIZES XS, S, M, L, XL
STANDARD RACK WEIGHT 1320g +/-
RACK DIMENSIONS 83cm x 50cm
SEAT POST DIAMETER 31.6 mm
SEAT POST CLAMP SIZE 34.0 mm
REAR WHEEL TA Insert: 622, 12 x 142mm spacing, disc only
QR Insert: 622, 10 x 135mm spacing, disc only
FRONT WHEEL 406, 15 x 100 mm spacing, disc only
TYRE CLEARANCE, FRONT 55mm with mudguards
TYRE CLEARANCE, REAR 55mm with mudguards
THRU AXLE REAR 12×142, 172mm long, 19mm thread length, 1.75mm pitch
THRU AXLE FRONT 15×100, 125mm long, 17mm thread length, 1.5mm pitch
FORK HEADSET 1 1/8″ Threaded Integrated with locking cap
STEERER HEADSET 1 1/8″ Ahead
BOTTOM BRACKET BSA 68mm
Q-FACTOR/STANCE 145mm
GEARS For 1x rear derailleur gear system
STANDARD RACK WEIGHT 1320g +/-
RACK DIMENSIONS 83cm x 50cm
RACK BOLT SIZE M15 x 15mm
WEIGHT Complete Medium bike weighs 20kg
RECOMMENDED MAXIMUM LOADING WEIGHT INCLUDING RIDER 175 kg
