Omnium Mini-Max

From £2,726.10

Dimensions:

Bicycle Weight:

Cargo Volume:

Cargo Box Dimensions:

Max Load:

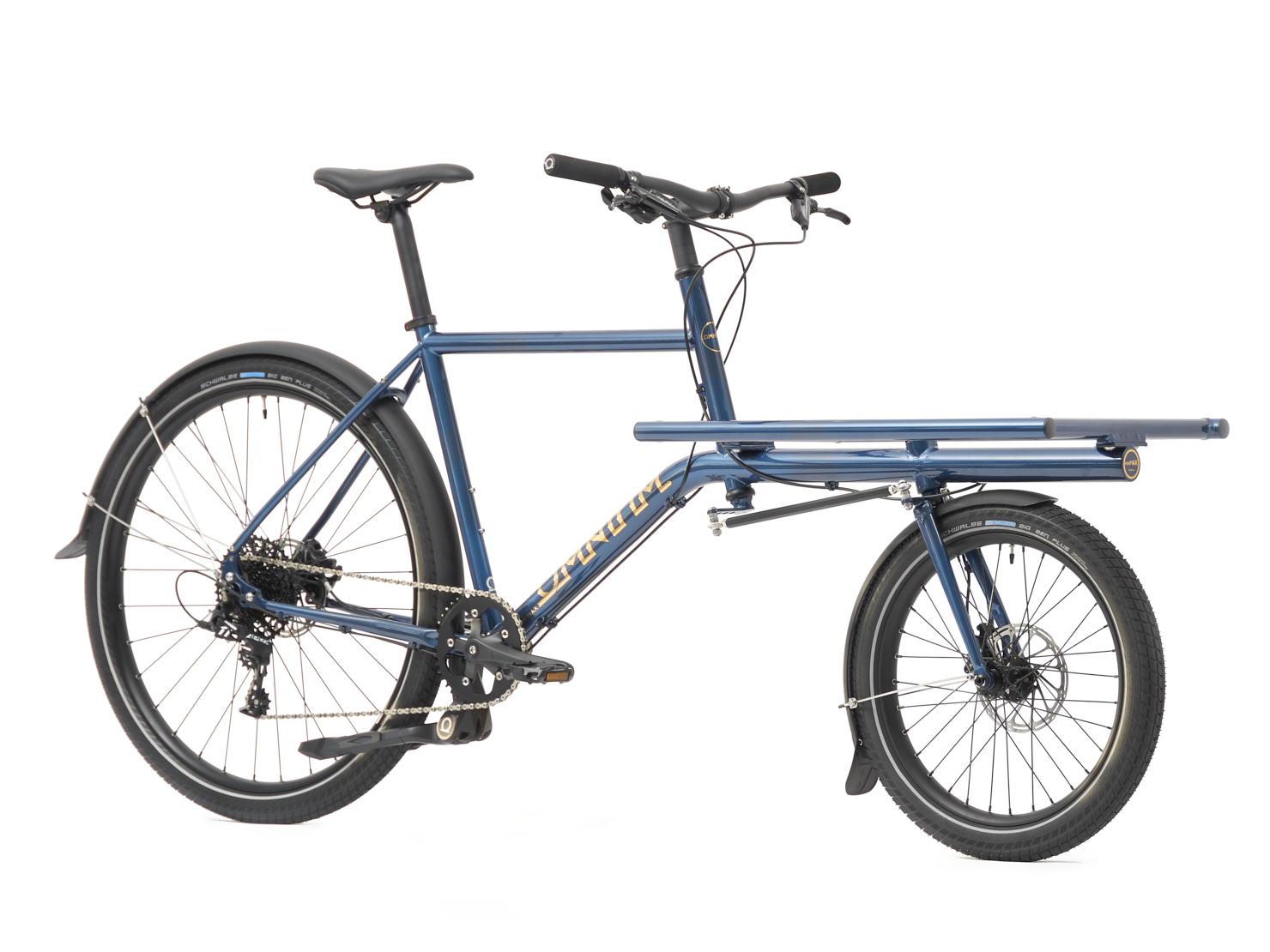

OMNIUM MINI-MAX

The OMNIUM Mini-Max is a capable fast, light and manoeuverable cargo bike. The front wheel’s positioning in the middle of the rack allows for improved steering and handling, making it a great option for navigating through city streets. It is an ideal choice for all who want those snappy turns and compact parking.

Add our nylon cargo webbing to provide a super-strong surface that can hold crazy loads all day long. We also have a cunning extender bar that slides trombone-like into the rack to give you absurd levels of cargo power.

Unlike some other cargo bikes on the market – ours feel pretty much exactly like a normal bike to ride. Not twitchy, not shaky, but agile and speedy. You’ll adapt in minutes and wonder how you survived without OMNIUM in your life.

Mini-Max V3

The OMNIUM Mini-Max WiFi stands for Wide Fit. Want more comfort, better grip, and increased stability?
The new WiFi sports 55mm tires on their respective ISO 406 and 622 rims, as well as thru axles front and rear. WiFi is the future!

The Mini-Max is the middle child of the lot, with the best of both the Cargo and Mini. The shorter wheelbase makes it handle more like a normal bike, resulting in a tighter turn radius and increased manoeuvrability.

Though the rack lacks the horns seen on the Cargo, it retains extender bar compatibility, and can still take some pretty impressive loads!

The fact that the front wheel is positioned more in the middle of the rack is positive for steering and handling, while stability during heavy loads is slightly less than that of the Cargo.

The Mini-Max is for those who value snappier turns and a tighter parking spot, and aren‘t necessarily looking to max out hauling capabilities on the regular.

Height                         Recommended Size

< 160 cm                                Extra Small
160 – 175 cm                              Small
175 – 185 cm                           Medium
185 – 195 cm                              Large
> 195 cm                                Extra Large





FRAME SPECIFICATIONS

MINI-MAX V3

FRAME MATERIAL Double-Butted Chromoly Steel Frame
5 SIZES XS, S, M, L, XL
GEARS For 1x rear derailleur gear system
SEAT POST DIAMETER 31.6 mm
SEAT POST CLAMP SIZE 34.0 mm
REAR WHEEL TA Insert: 622, 12 x 142mm spacing, disc only
QR Insert: 622, 10 x 135mm spacing, disc only
FRONT WHEEL 406, 15 x 100 mm spacing, disc only
TYRE CLEARANCE, FRONT 55mm with mudguards
TYRE CLEARANCE, REAR 55mm with mudguards
THRU AXLE REAR 12×142, 172mm long, 19mm thread length, 1.75mm pitch
THRU AXLE FRONT 15×100, 125mm long, 17mm thread length, 1.5mm pitch
BOTTOM BRACKET BSA 68mm
FORK HEADSET 1 1/8″ Threaded Integrated with locking cap
STEERER HEADSET 1 1/8″ Ahead
Q-FACTOR/STANCE 145mm
RACK DIMENSIONS 70cm x 50cm, made of Aluminum
STANDARD RACK WEIGHT 1320g +/-
RACK BOLT SIZE M10 x 15mm
WEIGHT Complete Medium bike weighs 19kg
RECOMMENDED MAXIMUM LOADING WEIGHT INCLUDING RIDER 150 kg

COMPONENT LISTS

APEX 1×11

BRAKES Sram Level TL, IS mount, 160mm rotor front and rear
GEARS Sram Apex 11 SPD, Sram PG-1130 11-42 cassette, YBN 11s chain
STEM 3D forged 6061 aluminium, 80mm standard, oversize 31.8mm, matte black
HANDLEBAR 6061 aluminium, 700mm wide, 15mm rise, oversize, matte black
SEATPOST 31.6mm forged alloy 6061 aluminium, T6, 15mm setback, matte black
GRIPS Omnium lock-on, black, foam
CRANKSET Driveline, 42t, CNC Narrow Wide Chainring
BOTTOM BRACKET FSA, Square Taper, 68mm BSA
HEADSET/S VP Components, sealed bearings, 1-1/8″ for the rear headtube, Integrated System (IS) (angular contact without cups) 1-1/8″ front
SADDLE Omnium Standard Saddle
TYRES Schwalbe Big Ben Plus 55-622 (700x55mm) & 55-406 (20×2.15″).
Size and model may vary based on availability.
WHEELS Omnium WiFi Wheelset: 12 x 142mm thru axle 622 (700c) rear & 15 x 100mm thru axle 406 (20″) front, 38mm outer width rims
KICKSTAND Omnium, cast aluminium twin-leg
PEDALS Cast metal platform, black
MUDGUARDS WiFi 60mm wide matte black

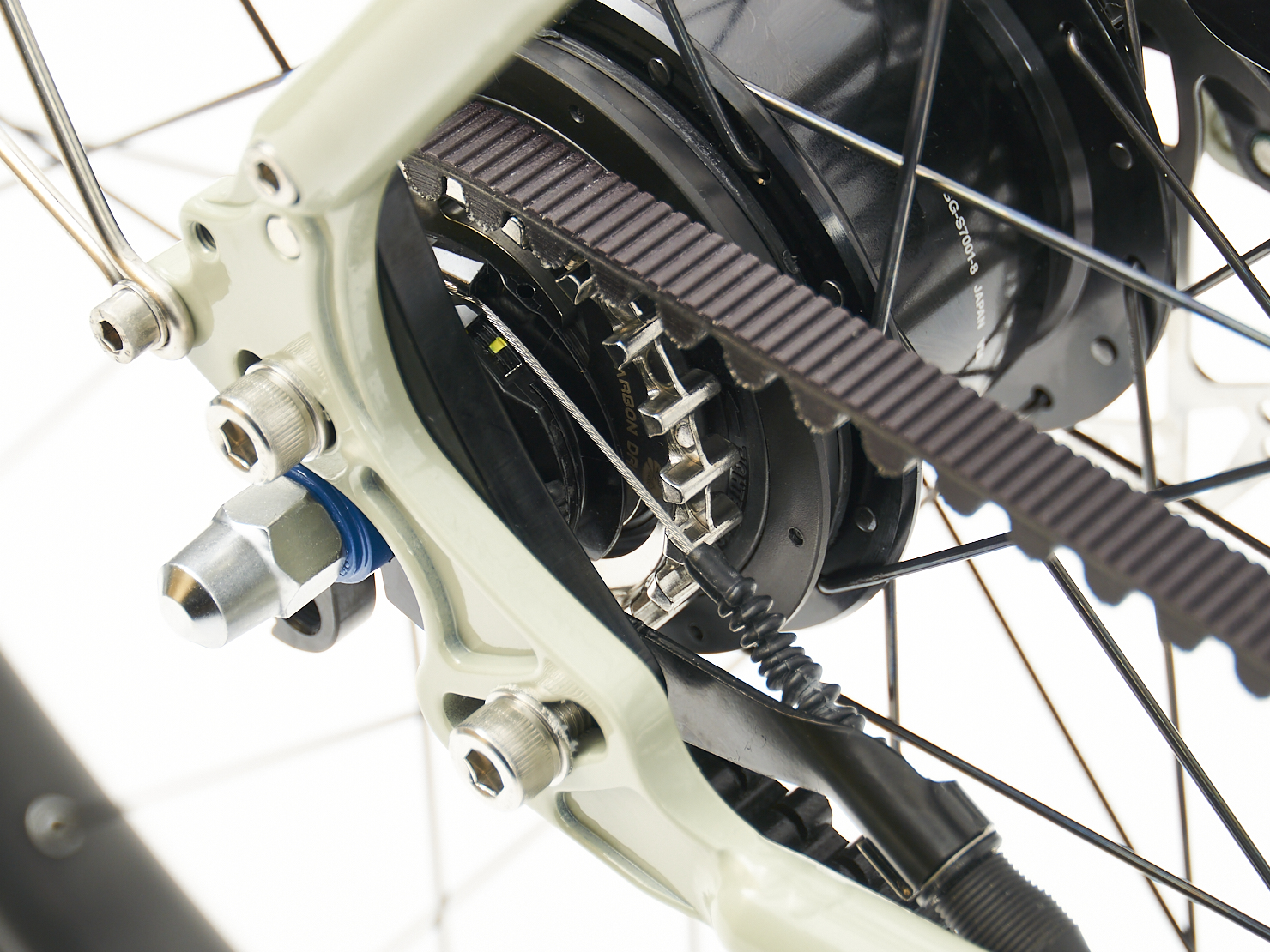

ALFINE 8 with Beltdrive

BRAKES Sram Level TL, IS mount, 160mm rotor front and rear
GEARS Shimano Alfine, 8 speed, centerlock disc mount
SPROCKETS / BELT Gates CDX 22t rear sprocket, Gates CDN 50t front sprocket, 122t CDX belt
STEM 3D forged 6061 aluminium, 80mm standard, oversize 31.8mm, matte black
HANDLEBAR 6061 aluminium, 700mm wide, 15mm rise, oversize, matte black
SEATPOST 31.6mm forged alloy 6061 aluminium, T6, 15mm setback, matte black
GRIPS Omnium lock-on, black, foam
CRANKSET / BB Gates CDN 170mm cranks, 122mm square tapered bottom bracket
HEADSET/S VP Components, sealed bearings, 1-1/8″ for the rear headtube, Integrated System (IS) (angular contact without cups) 1-1/8″ front
SADDLE Omnium Standard Saddle
TYRES Schwalbe Big Ben Plus 55-622 (700x55mm) & 55-406 (20×2.15″).
Size and model may vary based on availability.
WHEELS Omnium WiFi Wheelset: 10 x 130mm qr axle 622 (700c) rear & 15 x 100mm thru axle 406 (20″) front, 38mm outer width rims
KICKSTAND Omnium, cast aluminium twin-leg
PEDALS Cast metal platform, black
MUDGUARDS WiFi 60mm wide matte black

Omnium Bikes, based in Copenhagen, makes fast, light cargo bikes. They have a range of models: the original Omnium Cargo; a long design with a large cargo area, the Omnium Mini which is a ‘Short John’ bike with a smaller cargo rack – (in a standard and ‘Variant’ set-up for more comfort) and the Omnium Mini-Maxwhich is a shorter and nippier version of the Cargo. You can choose one of our standard builds (see the price list), buy just a frame-set, or order a complete custom bike.

£2,726.10
